Orbis® 750 Large Drum Assembly

Orbis 600 750 Large Drum Assembly new

Parts

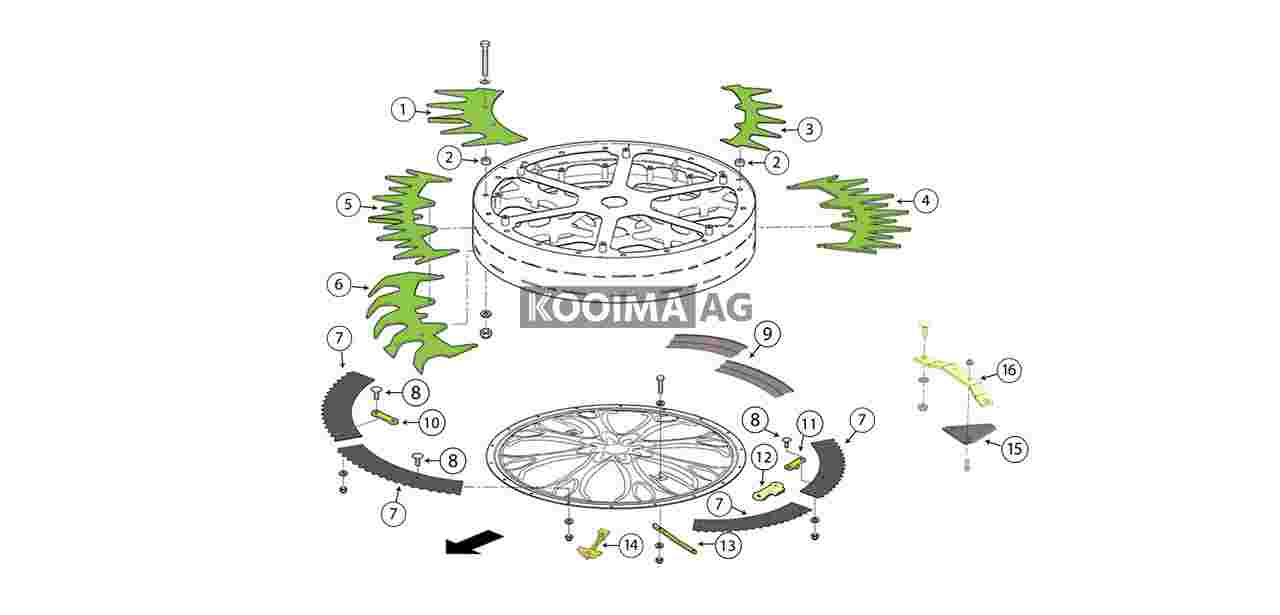

Sch. ID Product Image Kooima Ag # Title Replaces OEM # Price Quantity

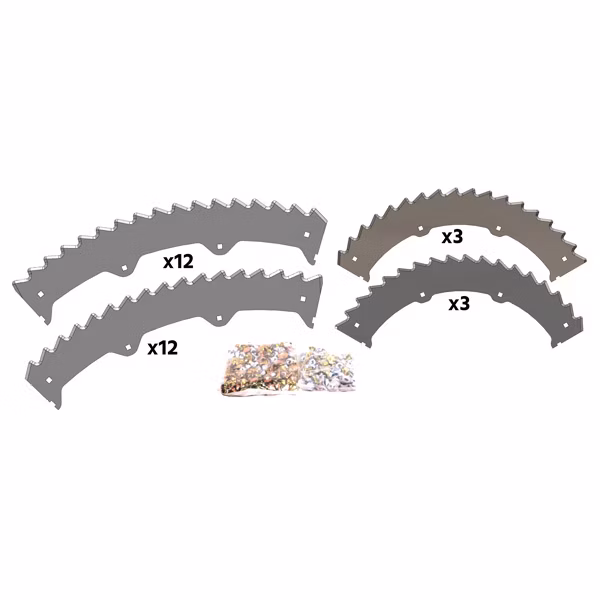

0 KORBIS750 750 Head Knife Kit 3837501, 3837371, 23008361, 23008341 $2,206.40
1 K4986171 Top Row Segment 4986172, 4986171, 4986170 $26.95
2 K4979540 Bushing 4979540 $2.45
3 K13108071 Top Row Segment 13108071, 13108070 $25.20
4 K13108080 Middle Row Segment 13108080 $20.55
5 K4986161 Middle Row Segment 4986161, 4986160 $26.95
6 K4970251 Counter Clockwise Bottom Segment 4970251, 4970250 $39.00
6 K4999651 Clockwise Bottom Segment 4999651, 4999650 $34.15
7 K3837371 Large Drum RH Knife 3837373, 3837372, 3837371, 3837370, 4992181, 4992180, 13116272, 13116271, 13116270 $69.00
7 K2619183 LH Large Drum Knife - New Aggressive Style 3837503, 3837502, 3837501, 3837500, 4992191, 4992190, 26191834, 26191833, 26191832, 13198223, 13198222, 13198221, 13198220 $84.50
