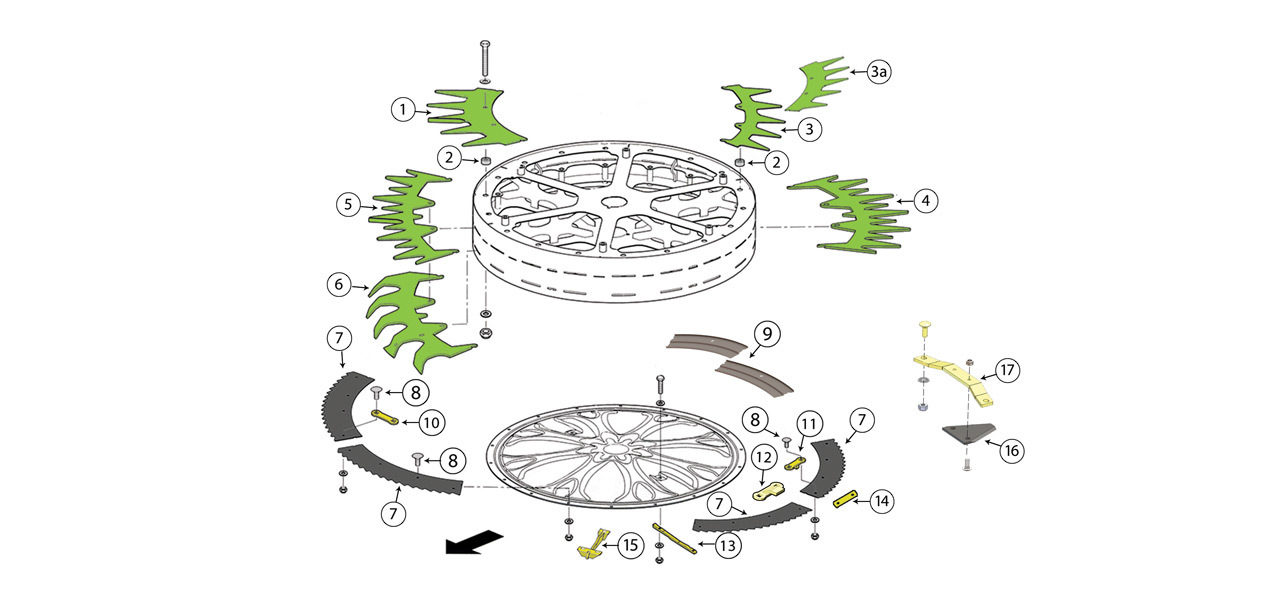

Orbis® 600 Large Drum Assembly
Parts
Sch. ID | Product Image | Kooima Ag # | Title | Replaces OEM # | Price | Quantity |
---|---|---|---|---|---|---|
0 | KORBIS600 | 600 Head Knife Kit | 3837501, 3837371 | $1,815.50 | ||
1 | K4986171 | Top Row Segment | 4986172, 4986171, 4986170 | $26.95 | ||
2 | K4979540 | Bushing | 4979540 | $2.45 | ||
3 | K13108071 | Top Row Segment | 13108071, 13108070 | $25.20 | ||
4 | K13108080 | Middle Row Segment | 13108080 | $20.55 | ||
5 | K4986161 | Middle Row Segment | 4986161, 4986160 | $26.95 | ||
6 | K4970251 | Counter Clockwise Bottom Segment | 4970251, 4970250 | $39.00 | ||
6 | K4999651 | Clockwise Bottom Segment | 4999651, 4999650 | $34.15 | ||
7 | K3837371 | Large Drum RH Knife | 3837373, 3837372, 3837371, 3837370, 4992181, 4992180, 13116272, 13116271, 13116270 | $69.00 | ||
7 | K2619183 | LH Large Drum Knife - New Aggressive Style | 3837503, 3837502, 3837501, 3837500, 4992191, 4992190, 26191834, 26191833, 26191832, 13198223, 13198222, 13198221, 13198220 | $84.50 |
Showing 1 - 10 of 24
