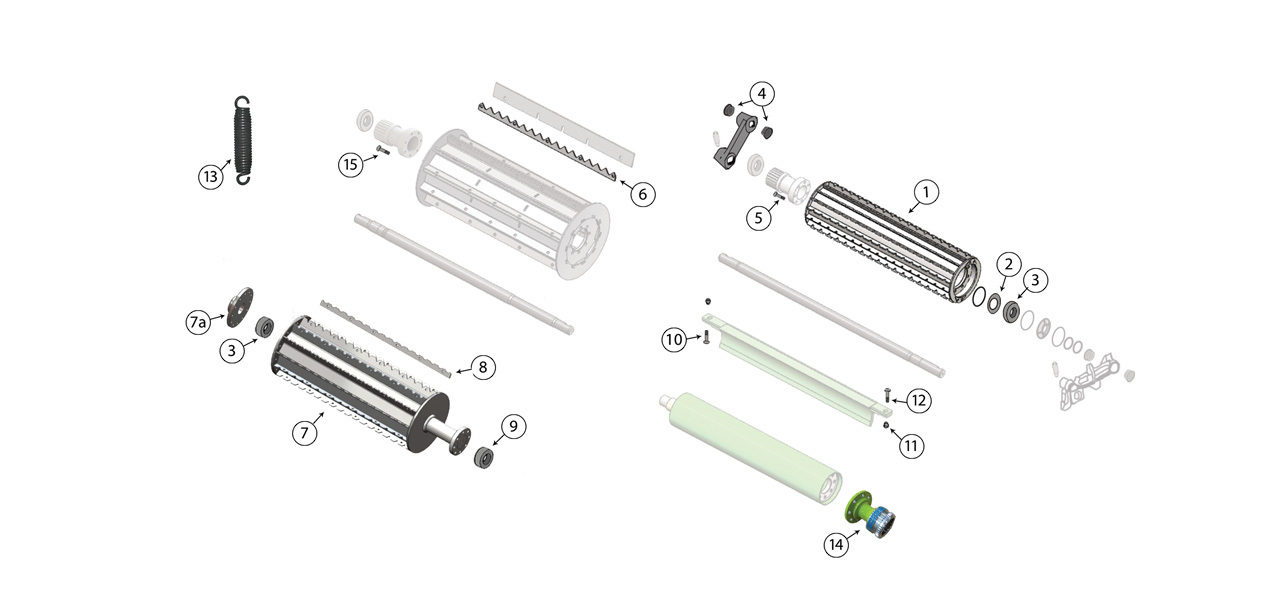

499 Feed Roll Assembly
Parts
| Sch. ID | Product Image | Kooima Ag # | Title | Replaces OEM # | Price | Quantity |
|---|---|---|---|---|---|---|
| 1 |
|
K13248910 | Upper Rear Feed Roll | 13248910 | $2,150.00 | |
| 2 |
|
K1782720 | Nylon Bearing Cover | 1782720 | $4.45 | |
| 3 |
|
K2122260 | Upper Rear & Lower Front Bearing | 2122260 | $18.00 | |
| 4 |
|
K0085430 | Lift Arm Bushing | 85430 | $4.25 | |
| 5 |
|
K2339661 | Drive Hub Bolt (M10) | 2339661 | $0.90 | |
| 6 |
|
K13247000 | Upper Front Feed Roll Tooth | 13247000 | $64.75 | |
| 6a |
|
K9879780BK | Feed Roll Tooth Bolt Kit (M10x30MM) | $87.00 | ||
| 6b |
|
K10712101BK | Bolt Kit for K13247000 Grass Option | $80.50 | ||
| 7 |
|
K13248680 | Lower Front Feed Roll (later series) | 13248680, 4952010, 13185402, 27510883 | $4,515.00 | |
| 7a |
|
K13122250 | Lower Front Feed Roll Flange | 13122250 | $415.00 |
Showing 1 - 10 of 20
