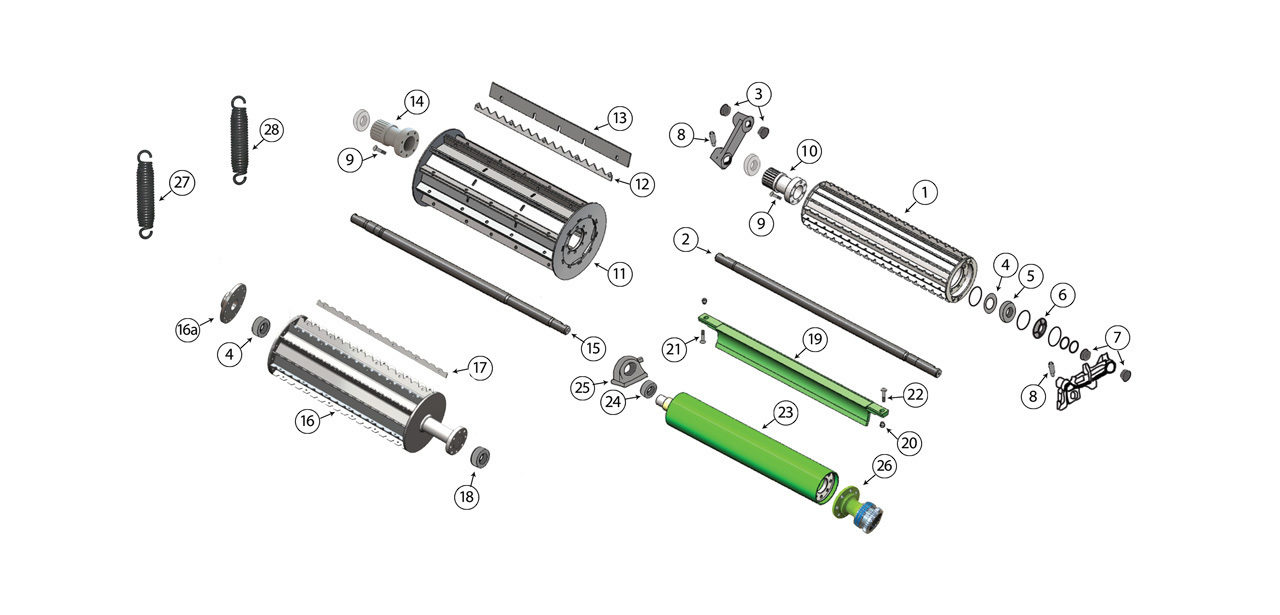

494 Feed Roll Assembly
Parts
| Sch. ID | Product Image | Kooima Ag # | Title | Replaces OEM # | Price | Quantity |
|---|---|---|---|---|---|---|
| 1 |
|
K9062020 | Upper Rear Feed Roll | 9062020 | $2,250.00 | |
| 1a |
|
K26668860 | Upper Rear Feed Roll-Update Kit - Bolt on LH Hub | 26668860 | $2,675.00 | |
| 2 |
|
K4951732 | Upper Rear Feed Roll Shaft (493, 494, 497, and 498 series) | 4951732, 4951730, 4951731 | $395.00 | |
| 2a | K26687770 | Upper Rear Shaft- Update | 26687770 | $695.00 | ||
| 3 |
|
K0085430 | Lift Arm Bushing | 85430 | $4.25 | |
| 4 |
|
K1782720 | Nylon Bearing Cover | 1782720 | $4.45 | |
| 5 |
|
K2122260 | Upper Rear & Lower Front Bearing | 2122260 | $18.00 | |
| 6 |
|
K9844360 | LH Roller Ring | 9844360 | $35.00 | |
| 7 |
|
K0085600 | LH Lift Arm Bushing | 85600 | $5.50 | |
| 8 |
|
K9071323 | Lift Arm Key | 9071323, 9071322 | $28.15 |
Showing 1 - 10 of 41
